Availability: In stock


    Dimensions: 1880mmL x 355mmW x 175mmH
    Angle of approach: 5.5 degrees
    Ramp weight capacity: 680 Kgs. per ramp
    Total weight capacity: 2700 Kgs. per set
    Maximum tire width: 305mm
    Product weight: 7.0 Kgs. per ramp
    Shipping: weight of 14.50Kgs., box size of 1880mmL x 370mmW x 216mmH
  • Proudly made in the USA!
  • Authorised Australian Distributor. Shipping Australia Wide!

• Use on a level, flat surface.
• Ensure that the bottom of each ramp makes full contact with a solid surface.
• Do not exceed the recommended maximum tire width or maximum total vehicle weight capacity.
• Never accelerate or apply brakes suddenly. Drive up on ramps in a slow, steady pace.
• When the vehicle is in place, put it in park (or in reverse gear for manual transmissions) and set the emergency brake.


Qty :



This version will work with a 305mm(12”) to 406mm(16”) flap on your trailer (which will fall into the “extra” indentation/cut-out).

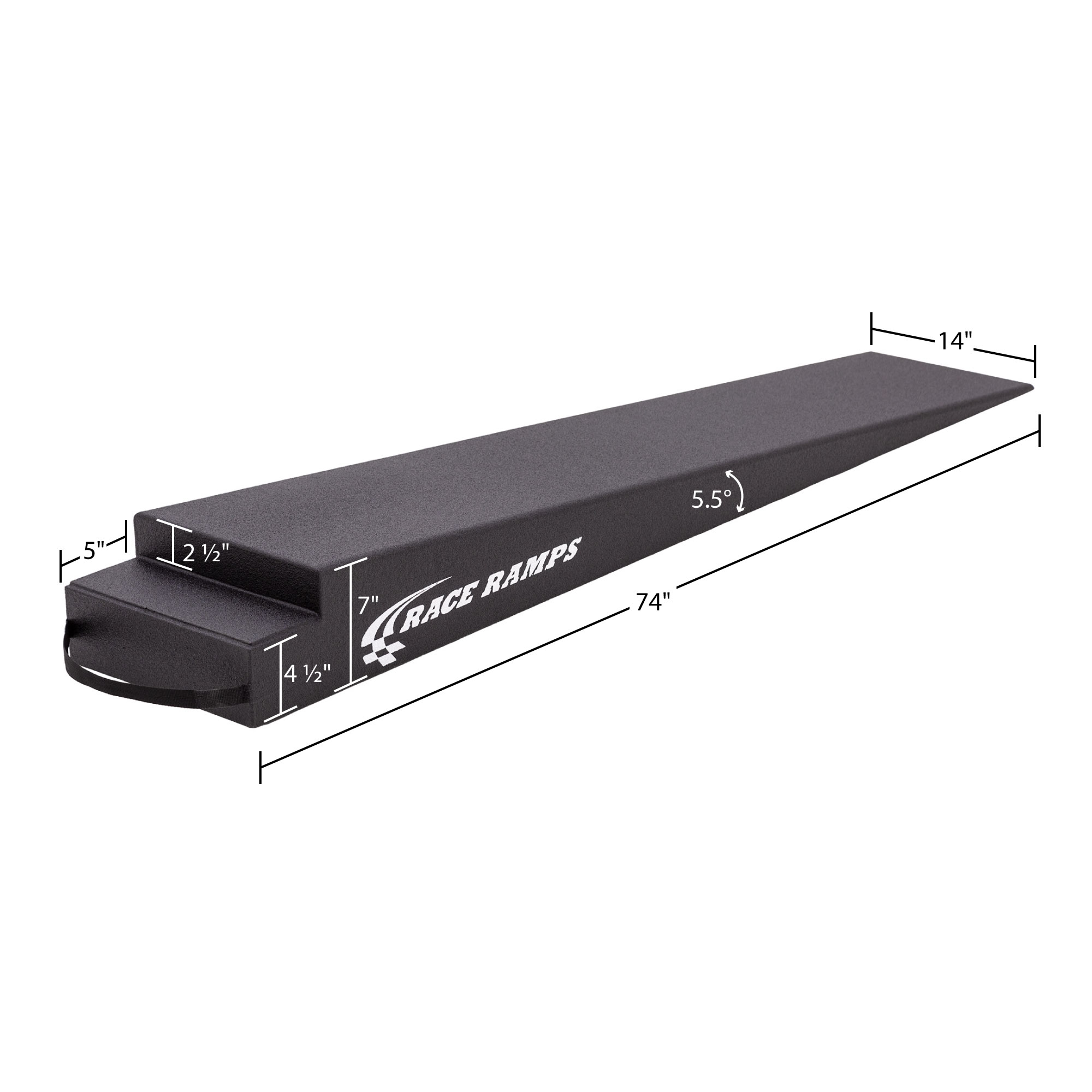

  • Dimensions: 1880mmL x 355mmW x 175mmH
  • Approach angle: 5.5 degrees
  • Notch size: 127mmL x 63mmH
  • Ramp weight capacity: 680Kgs. per ramp
  • Total vehicle weight capacity: 2700Kgs. per set
  • Maximum tire width: 305mm
  • Product weight: per ramp
  • Shipping: weight of 14.50Kgs., box size of 1885mmL x 370mmW x 216mmH




Is your trailer door too steep to get your car to the track or autocross? Are you tired of hauling around heavy, unsafe boards to use as a makeshift ramp extension? Race Ramps has the solution for you: simply place your trailer door on the notch of our specially-designed Trailer Ramps and decrease your angle of approach to as little as 5.5 degrees.

These hassle-free, lightweight ramps are ideal for low-ground-clearance cars with extra-wide tires. Numerous size options are available in our one- and two-piece designs, with and without flap cut-outs. Use our ramp calculator above to determine which Trailer Ramps will work best for your car and trailer.

Trailer Ramps are 100% solid, made with a high-density expanded polystyrene that is coated with a hybrid polyuria—creating a textured, “un-scootable” surface. This patented process results in a product that is extremely lightweight, yet strong and durable. The ramps will not slide, scratch, or otherwise damage any floor type and can hold up to 680Kgs. per ramp for a total vehicle weight capacity of 2700 Kgs.



Weight14.5 kg
Dimensions190 × 37 × 22 cm
